NX-8E = 8 receivers maximum. NX-8 = 4 receivers maximum. NX-6 = 3 receivers maximum. NX-4 = 4 receivers maximum. Enter. 94 + Installer Code. Enter keypad number (1 to 8) then. Enter partition (1 to 8) then. Keypad should exit. Enter Program 1. Caddx NX-148E-RF Keypad Programming NetworX (NX-6 APT) Programming Manual. NetworX (NX-8) Installation Manual.
Wiring information 2 nx-584 drawing 4 enrolling the nx-584 4 programming the nx-584 5 what the leds indicate 6 programming locations 7 location 0 programming the option flags 7 location 1 programming the baud rate 7 location 2 enabling the transitions 7 location 3 programming the command / request enables 8 location 4 programming lcd keypad.

Caddx Networx Nx 8

ARMING IN “EXIT” MODE EXIT is used when the user is away from the premises

and wants the interior protected (the motion detectors ON).

1. Close all protected doors and windows.

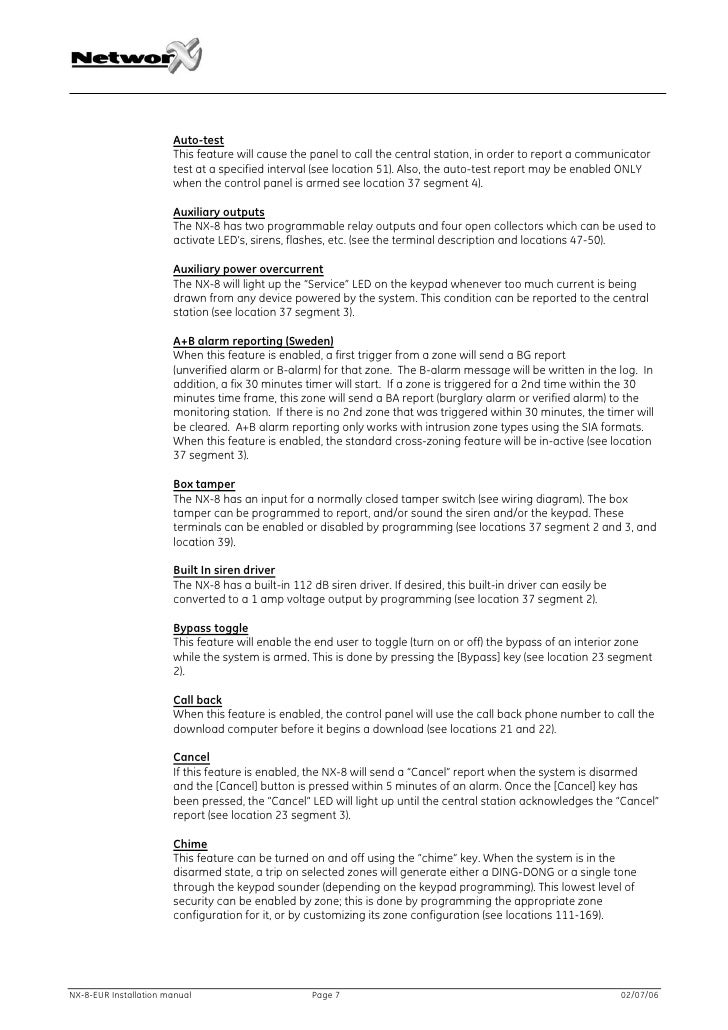

Auxiliary Outputs - The NX-8 has four programmable outputs that ca n be used to activate relays, LED=s, etc. (See the terminal description on page 57 and locations 45-50, page 25) Auxiliary Power Overcurrent - The NX-8 will illuminate the 'Service' LED on the keypad whenever too much current is drawn from any device powered by the system.

ARMING IN “STAY” MODE STAY is used when the user is inside the premises and

wants protection around the perimeter (the motion

detectors OFF).

2. Press the “STAY” key.

DISARMING SYSTEM Enter code.

2. Enter a master code. The “ready” light will flash.

3. Enter the 2-digit user number (example: “03” for user

4. Enter the new 4-digit user code. Note: To delete a

user code, enter * * * * for a 4-digit code.

5. The ready light will flash. If the code is rejected, the

6. If another user code needs to be programmed,

7. Press the “#” key while the ready light is flashing to

exit the User Code Programming Mode.

BYPASSING ZONES System must be in disarmed state.

2. Enter 1 or 2 digits indicating the zone you wish to

bypass. (Example: Press the “1” key for zone 1,

press “1” then “2” for zone 12.)

4. The corresponding zone light will illuminate indicating

the zone has been bypassed. Repeat steps #2 and #3 for

any other zone(s) that need to be bypassed.

5. Press the “#” key to exit the Bypass Mode. The bypass

light will stop flashing upon exiting the Bypass Mode.

All zones will automatically be unbypassed each time the

system is disarmed.

VIEW ALARM MEMORY 1. Press “8” “3.” The zone(s) that created the last alarm

2. The ALARM MEMORY feature will flash those zones

that created alarms and will light steady those zones that

were bypassed during the last alarm.

IDENTIFYING TROUBLES

FLASHING ARMED LIGHT The armed light will flash when there has been

an alarm during the previous arm cycle.

POWER LIGHT OFF No AC power.

POWER LIGHT FLASHING Low system battery.

FIRE LIGHT FLASHING Trouble with fire device or wiring.

ZONE LIGHT FLASHING RAPIDLY A zone is in a trouble condition.

SERVICE LIGHT IS ON Press “*2” for further information (indicated by

zone lights).

Zone 1 – System fault.

How To Program Caddx Nx 8

Zone 2 – Zone tamper.

Zone 5 – Zone trouble.

Zone 6 – Telephone trouble.

Zone 7 – Dialer failure.

Zone 8 – System lost time.

Enter “#” to exit mode.

How To Program Caddx Nx 8 Wiring Problems

ENTER CODE TO SILENCE TROUBLE BEEPS.

ENTER “*7” TO ATTEMPT TO RESET TROUBLES.

ENTER CODE TO CLEAR SERVICE LIGHT AFTER A PHONE TROUBLE HAS BEEN CLEARED.

SET CLOCK 1. Press “*97.”

3. Enter time as 4-digit military time.

Hi Mike,

Do you want to do a 'factory default' on the NX-8 panel? If that is what
you want to do, click the following link for the manual. Go to page 8 and
follow the instructions for 'Loading Factory Defaults' in the center of the
page.

How To Program Caddx Nx 8 Wiring Kit

NOTE: Doing this will clear the program, requiring you to program the entire
system from scratch. Please be absolutely certain this is what you want to
do before doing so.

If all you want is to change the Download Access Code, that is stored in
Location 20. Follow the instructions for changing that value alone.

Another significant code is the 'Go To Program' code, found in location 42.
It's a 4- or 6-digit code. This is the code you use to enter programming
mode.

To change any item, enter programming as follows:

Disarm the system.
Press [*]-[8].
Enter the current 'Go To Program' code.
Press [0]-[#] to program functions of the NX-8 master control panel itself.
Enter the location number you wish to display/alter, followed by the [#]
key.
Enter the desired new data, followed by the [*] key.
After you press the [*] key the program will advance to the next segment.
Change it if needed and press [*] to scroll on.

For more detailed instructions, see page 9 of the manual I referenced above.

Regards,
Robert L Bass

>
Bass Home Electronics
The Online DIY Alarm Store
http://www.Bass-Home.com
4883 Fallcrest Circle
Sarasota, FL 34233
877-722-8900 Sales & Tech Support
941-925-9747 voice (Florida)
